XH12-3 Adapter board V2 - 12S - XH
New version with 16 cm balance cable. The cables are very flexible and have silicone insulation. The cabel cross-section is 22 AWG = 0.34 mm²
The underside of the circuit board is safely covered with a black plastic housing contact.
Intended for connecting Lipo batteries with XHR balancer plug to the 12S Junsi iCharger or other 12S chargers with XH plug connection.
The following plug strips are available on the board:
- 2x 3S
- 2x 4S
- 2x 5S
- 2x 6S
- 1x 7S
- 1x 8S
- 1x 9S
- 1x 10S
- 1x 11S
- 1x 12S
This means that the following battery packs can be charged without an additional adapter:
- 3S to 12S as a single pack with XH connector strip (socket)
- 2 packs each connected in series - 3S+3S or 4S+4S or 5S+5S or 6S+6S
Scope of delivery:

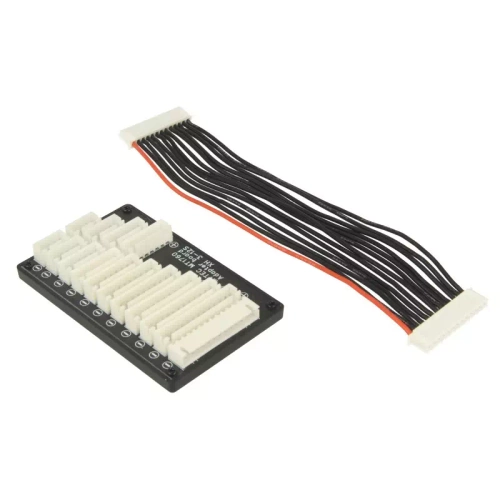

MTTEC XH12-3 adapter plate V2 with XHR plug system
XHR connection cable for 12S - 13-wire - very smooth - XH socket on each side - length 16 cm
Printed instructions in German/English
When connecting 2 packs in series, the balance plug of the battery that is connected to the main minus must always be plugged into the first port on the circuit board. The first port is marked by the long white line on the minus side of the circuit board.
The Junsi connection cable BW-1313 for the Junsi 12S adapter plate 13-wire - 26 AWG = 0.14 mm² also fits the balancer board.
