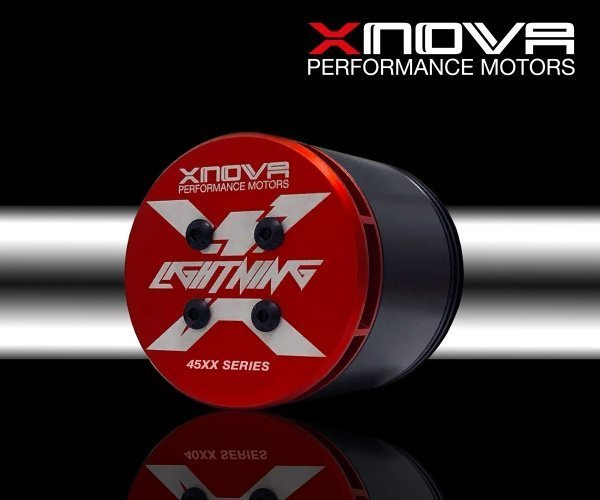

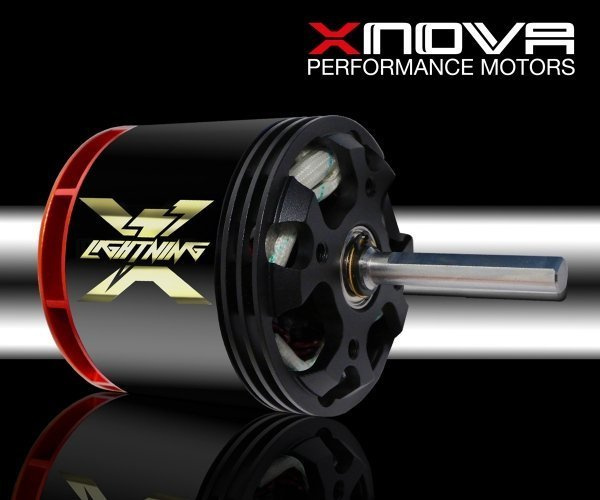

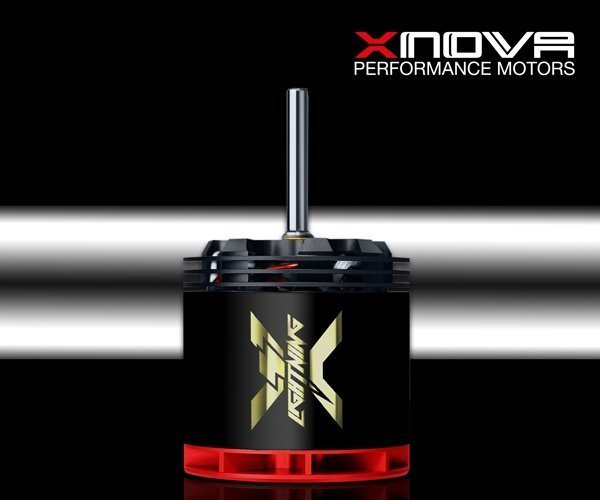

Motor Xnova 4525 Lightning 480KV
We have spent hours of testing to improve the very well established 4525 series. The result is an even better overall performing motor and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for extrem 3D, 630-710mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new Mikado 690mm blade size helicopter.
Xnova brushless high performance outrunner motor designed for 690mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the logo 690SX helicopter.
- Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
- Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
- High-performance neodymium magnets, heat resistant up to 180 degrees C.
- All other features same as XTS series.
RPM/V: 480kV
Volt: 30V
Weight (without connector): 490g
Housing length (without shaft): 56mm
Diameter: 55.7mm
Shaft length: 56mm
Shaft diameter: 6mm
Mounting holes: 30mm
Mounting screw: M4 x 4
Maximum power: 4300W
Maximum power for 2 seconds: 11000W
Maximum continuous current: 96A
