Goblin 380/500/570 - Ramię ślizgacza LYNX

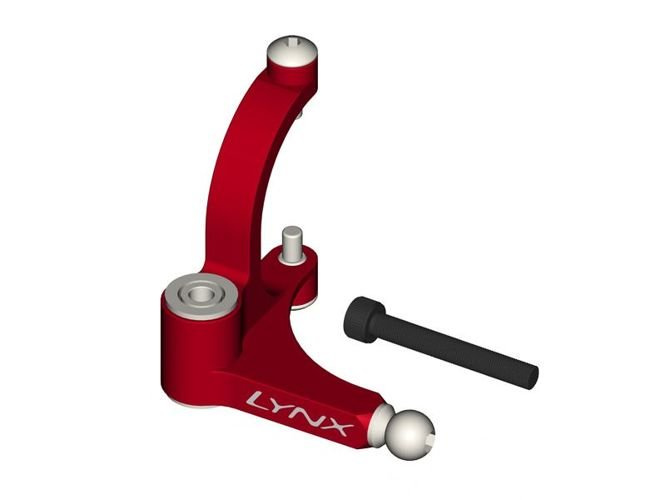

Lynx Heli GOBLIN 500 Precision Tail Bell Crank Lever Red Devil Edition LX0614
For the easy installation the G500 tail Bell Crank Lever is preassembled in factory and ready to use.
FEATURES:
- Direct replacement for the standard Goblin 500 tail Bell Crank Lever.
- Increase tail response thanks precise dimensions and Aluminum alloy strength.
- Flanged radial bearing ABEC 5 class assures the best free-rotation and free-play.M
- FEA (Final Elements Analysis) design assisted, resulting in lightweight and maximum strength.
TECHNICAL SPECIFICATIONS:
- Tail Bell Crank Lever Material: Aluminum 7075-T6 – Red anodized finish.
- Bearing material: Chrome Steel – ABEC5
- Screw material: Carbon Steel Class 12.9
- Linkage Ball and Pin Screw Material: Stainless Steel AISI 304
- Weight: 3g
PACKING LIST:
- 1 x G500 CNC Tail Bell Crank Lever - Red (pre-assembly with all bearing and hardware necessary for the quick installation)
- 1 x Hex Cup Screw M3x18
Do użytku w:
- Goblin 380
- Goblin 500
- Goblin 570
