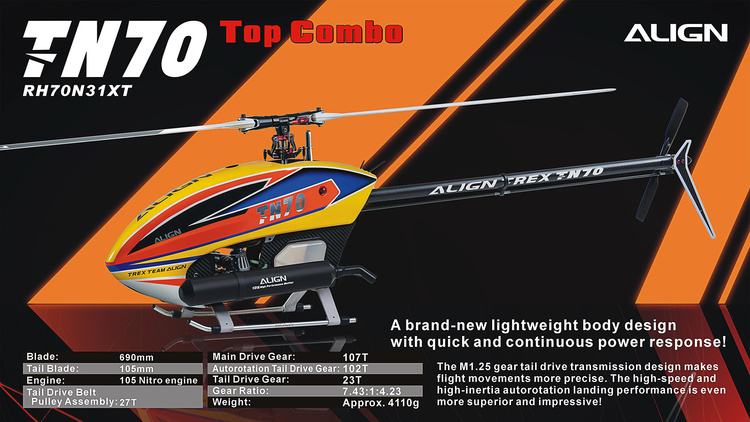

Heli. Align T-REX TN70 Top Combo
Electric equipment
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●MICROBEAST² Flybarless system x 1
●Governor Sensor x 1
●ALIGN 105 High Performance Pipe x 1
●O.S. MAX-105HZ Engine x 1
Specification
●Length: 1352mm
●Height: 397mm
●Width: 202mm
●Main Blade Length: 690mm
●Main Rotor Diameter: 1543mm
●Tail Rotor Diameter: 279mm
●Tail Drive Belt Pulley:27T
●Main Drive Gear:107T
●Autorotation Tail Drive Gear: 102T
●Tail Drive Gear: 23T
●Gear Ratio: 7.43:1:4.23
●Engine: 105 Nitro Engine
●Fuel Tank Capacity: 630cc.
●Takeoff Weight: Approx. 4110g
Accessories
●TN70 Kit Set x 1 set
●27T Tail Drive Belt Pulley x 1
●30T Tail Drive Belt Pulley x 1
●690 Carbon Fiber Blades x 1 set
●105 Carbon Fiber Tail Blades x 1 set
●ALIGN 105 High Performance Pipe x 1
●O.S. MAX-105HZ Engine x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●MICROBEAST² Flybarless system x 1
●Governor Sensor x 1
Radio transmitter and electronic equipment required for assembly
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more) or Remote Receiver
●Engine starter x 1
●Fuel pump x 1
●Engine fuel x 1
●Digital Pitch Gauge
●Multi-function Tester
●2S1P 7.4V Li-Po 1900~2600mAh Battery x 1
