Servo KST X20-1035 V3 HV (550-700)

Servo KST X20-1035 V3 HV (550-700)

+ Add to compareAdd to shopping list
Size
.
165,70 €
incl. VAT / pcs
Regular price / pcs
of
You can also buy using:
Available on request
Available on request
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

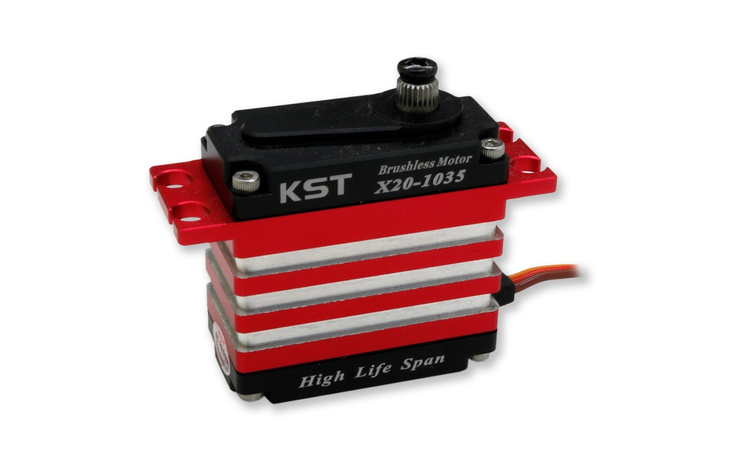

This is a KST X20 V3 X20-1035 Tail Servo. The X20 Servos feature a brushless motor, full CNC aluminum case, and a complete set of hardened steel gears through out each servo. The tail servo offers 169oz/in of torque at a blistering fast 0.03 speed at 8.4V.

The developers at KST ensured nothing but the best components were utilized during construction of this servo, components as large as motors and gears, materials for the servo case, and small components such as the PCB board driving the motor. EMF currents in common DC voltage applications can generate large EMF spikes under operation, which can wreak havoc on other connected electronics. X20 servos feature a PCB board which minimizes EMF spikes, protecting other electronics from having to filter out the noise.

Features:

  • Standard size aluminum case
  • Low EMF design
  • Full metal gears
  • Dual ball bearings
  • HV compatible

Specifications:
Operating Voltage: 6-8.4V
Size: 40.5x20x40mm (width x height x thickness)
Torque (Tail): 1.0N.m @ 7.4V; 1.2N.m. @ 8.4V | 140oz/in @ 7.4V; 169oz/in@ 8.4V
Speed (Tail): 0.035sec/60° @ 7.4V; 0.03sec/60° @ 8.4V
Weight: 72g
Working Frequency (Tail): 760us/560Hz

Motor: Brushless
Ball Bearing: 6BB

Brand
KST
Entity responsible for this product in the EU
AVN-Security GmbHMore
Address: Warthweg 5APostal code: 64823City: Groß-UmstadtCountry: GermanyE-mail: info@kst-servos.com
Catalog no.
X20-1035
Producer code
X20-1035
