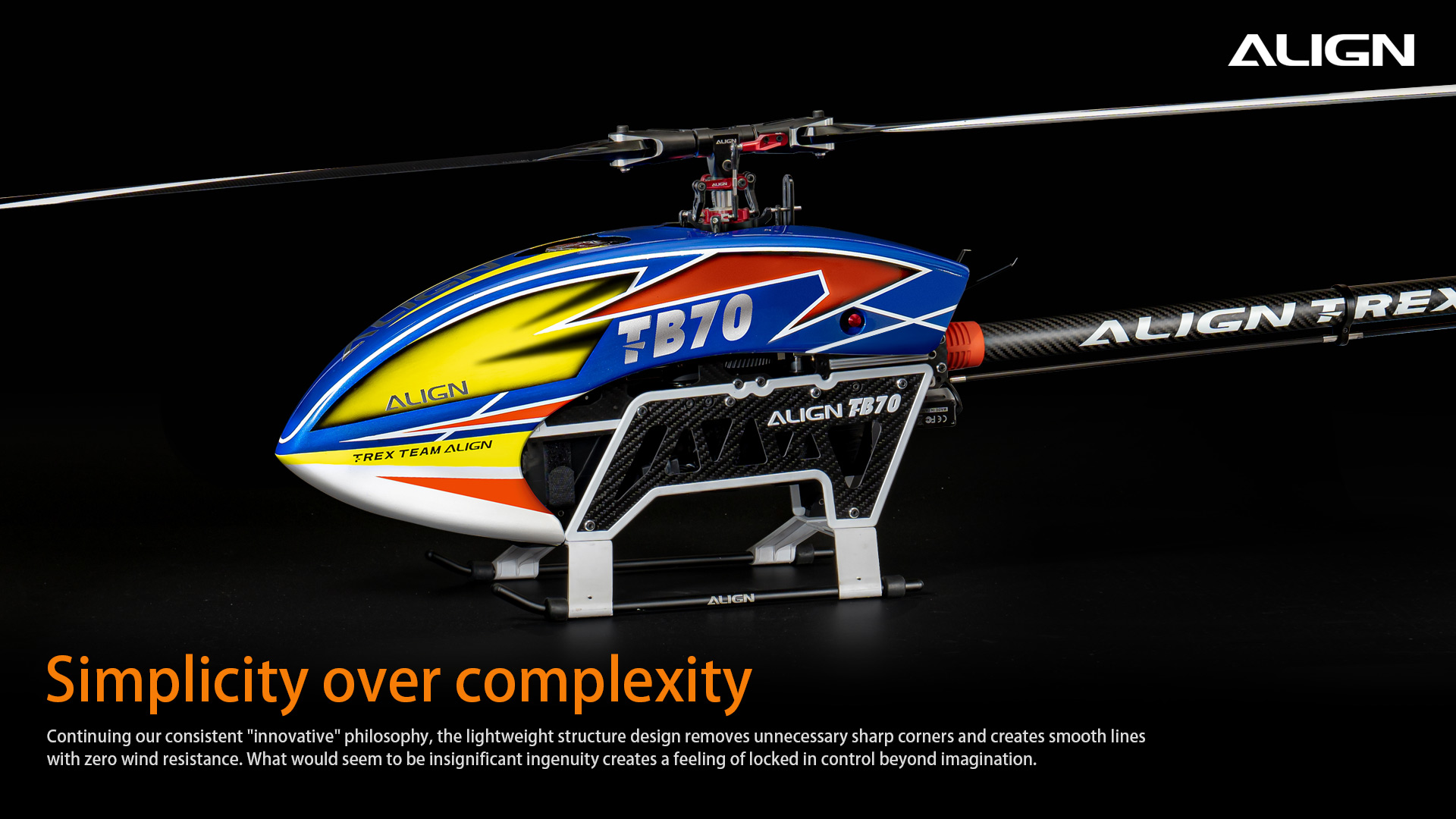

Heli. Align T-REX TB70 Top Combo

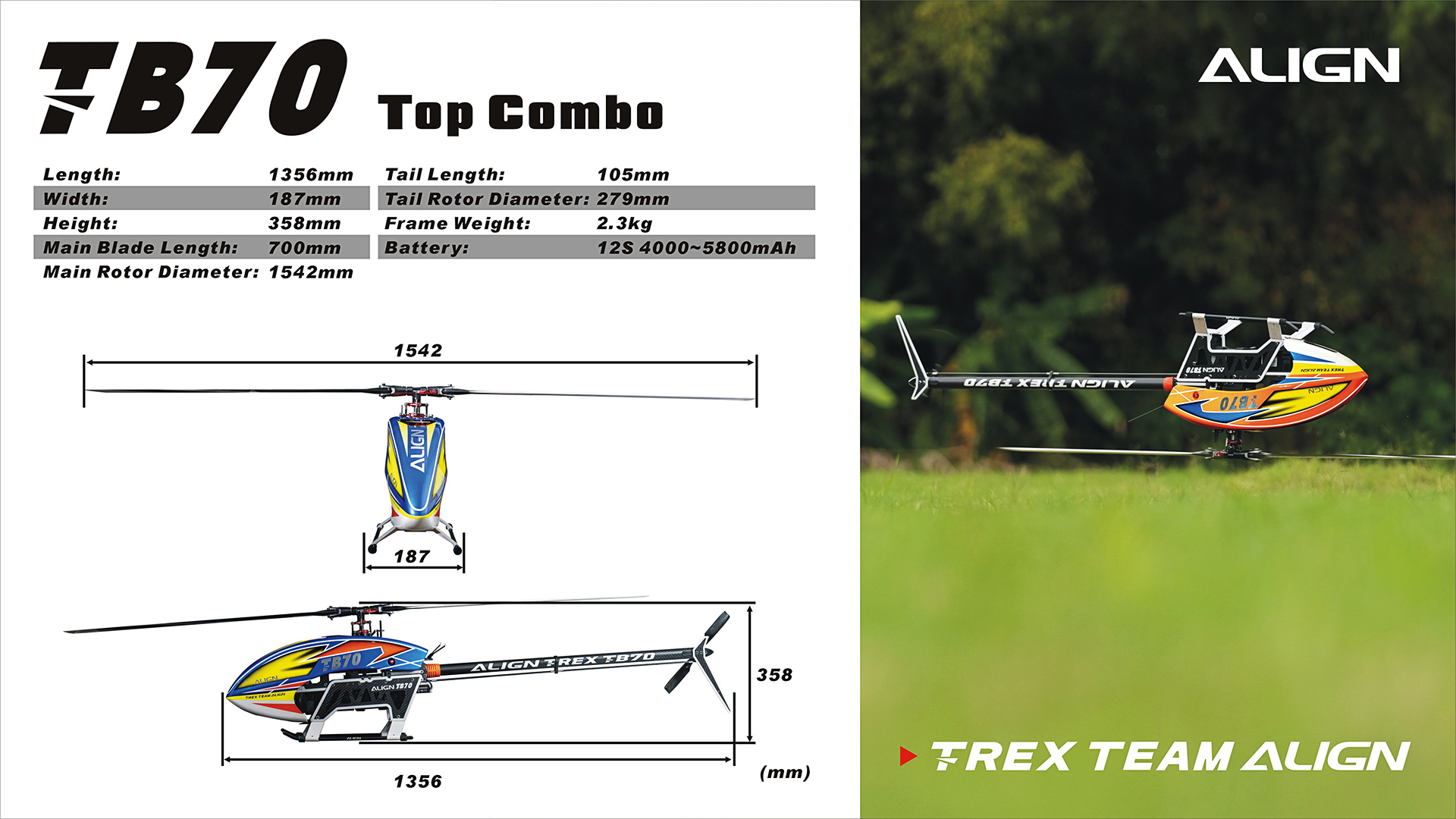

Specification

●Length: 1356mm
●Height: 358mm
●Width: 187mm
●Main Blade Length: 650-730mm
●Main Rotor Diameter: 1542mm
●Tail Length: 105-115mm
●Tail Rotor Diameter: 279mm

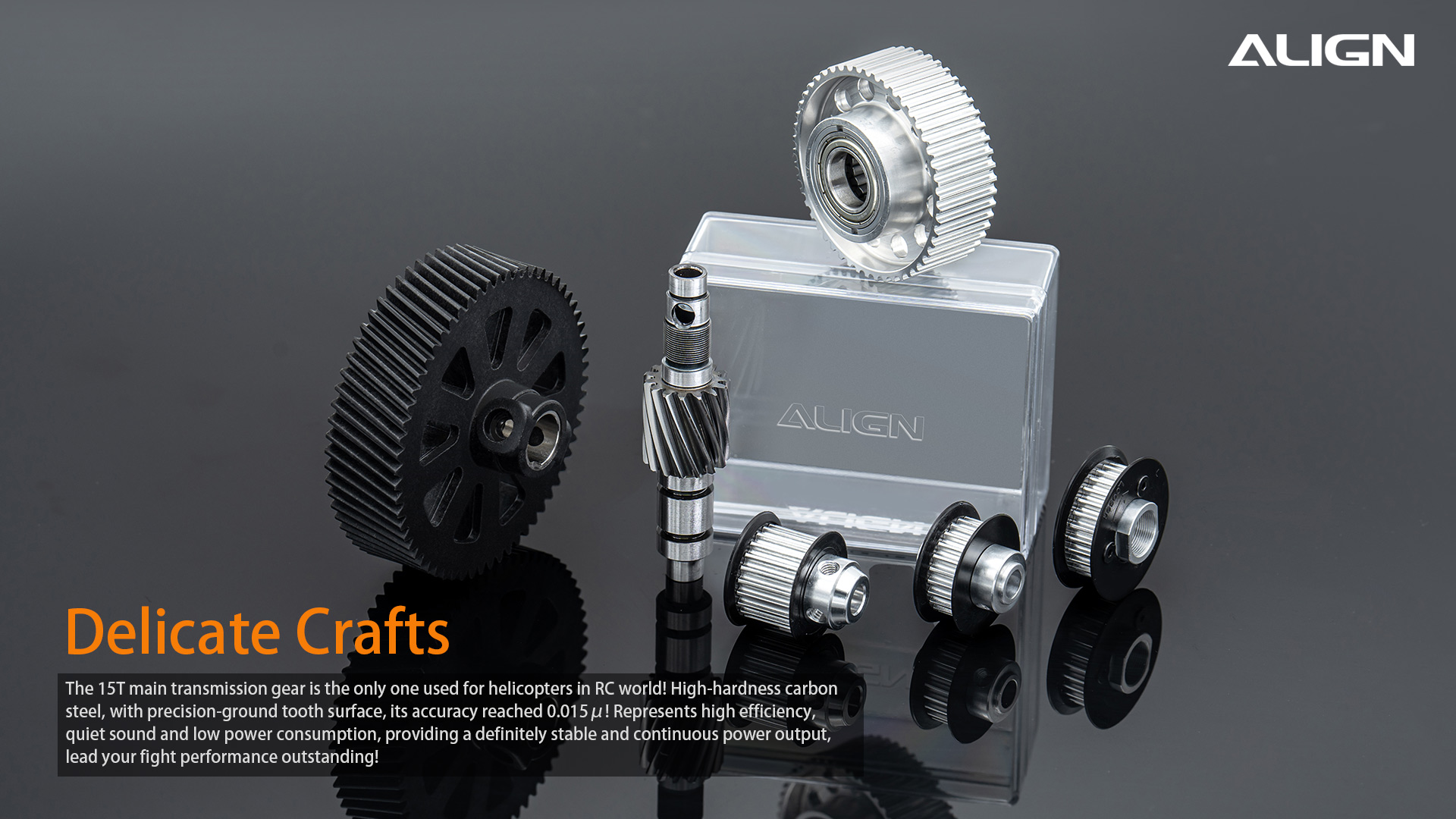

●Motor Belt Pulley: 22T

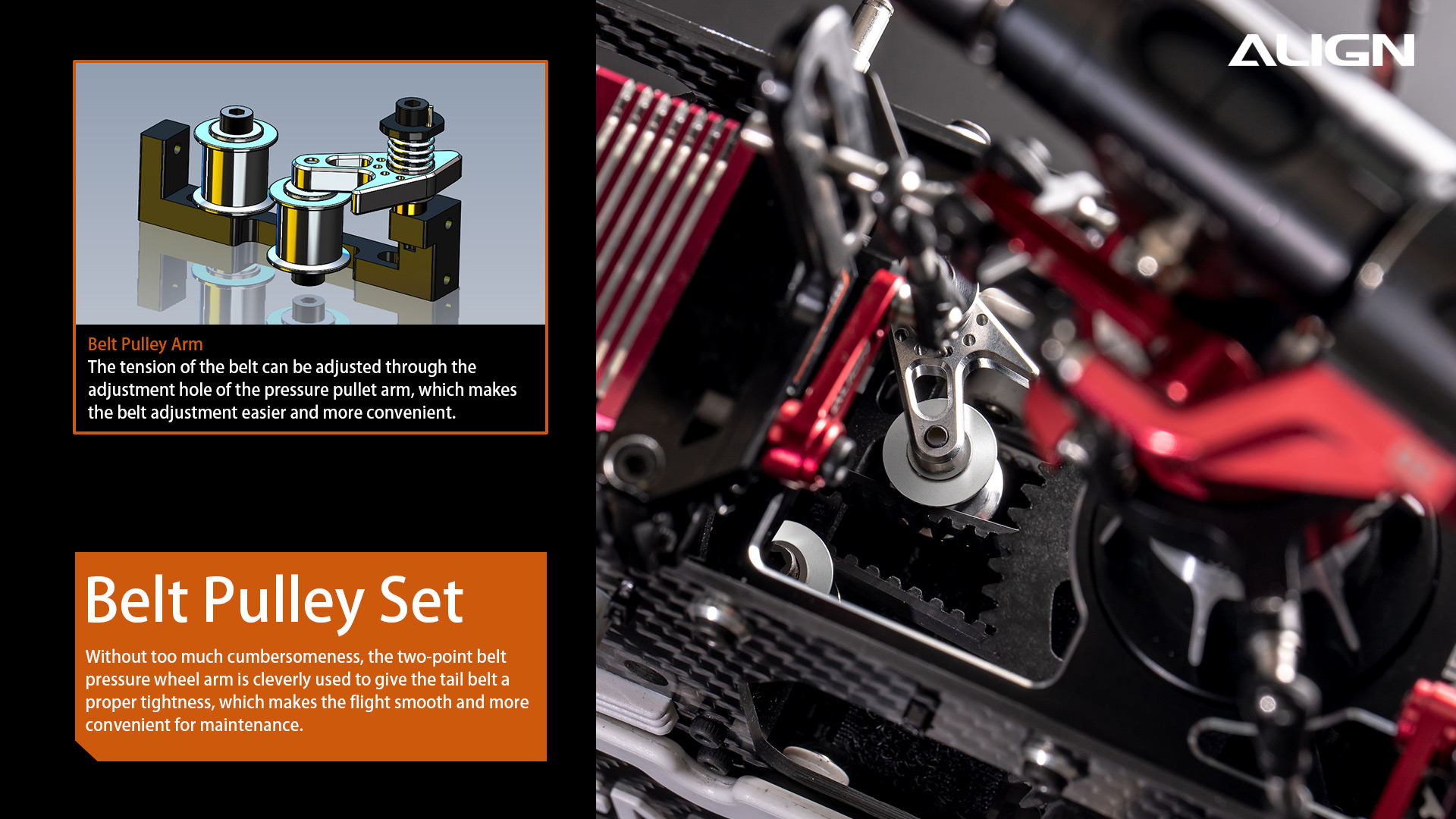

●Belt Pulley: 50T
●Front Drive Main Shaft: 15T

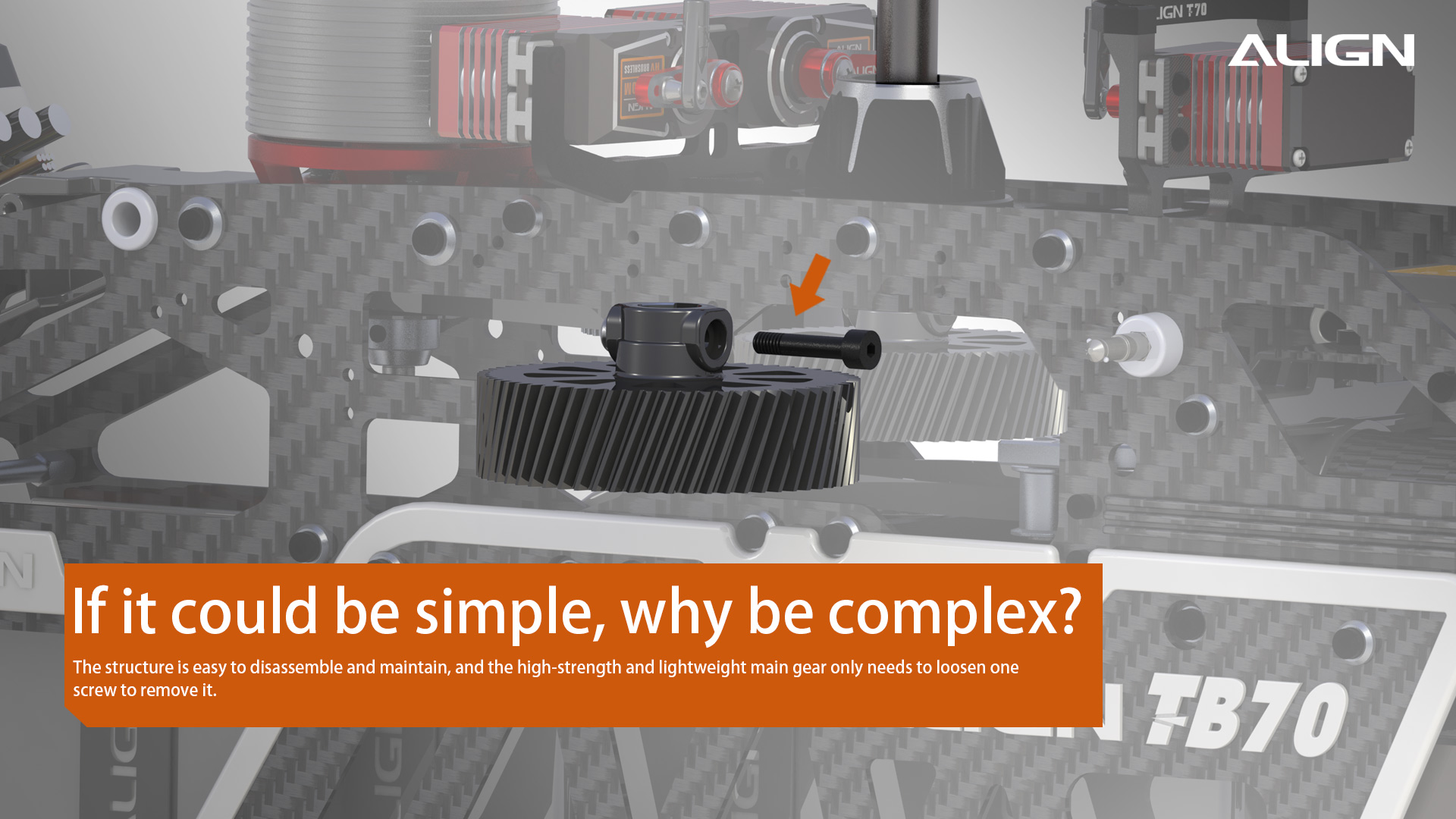

●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 27T

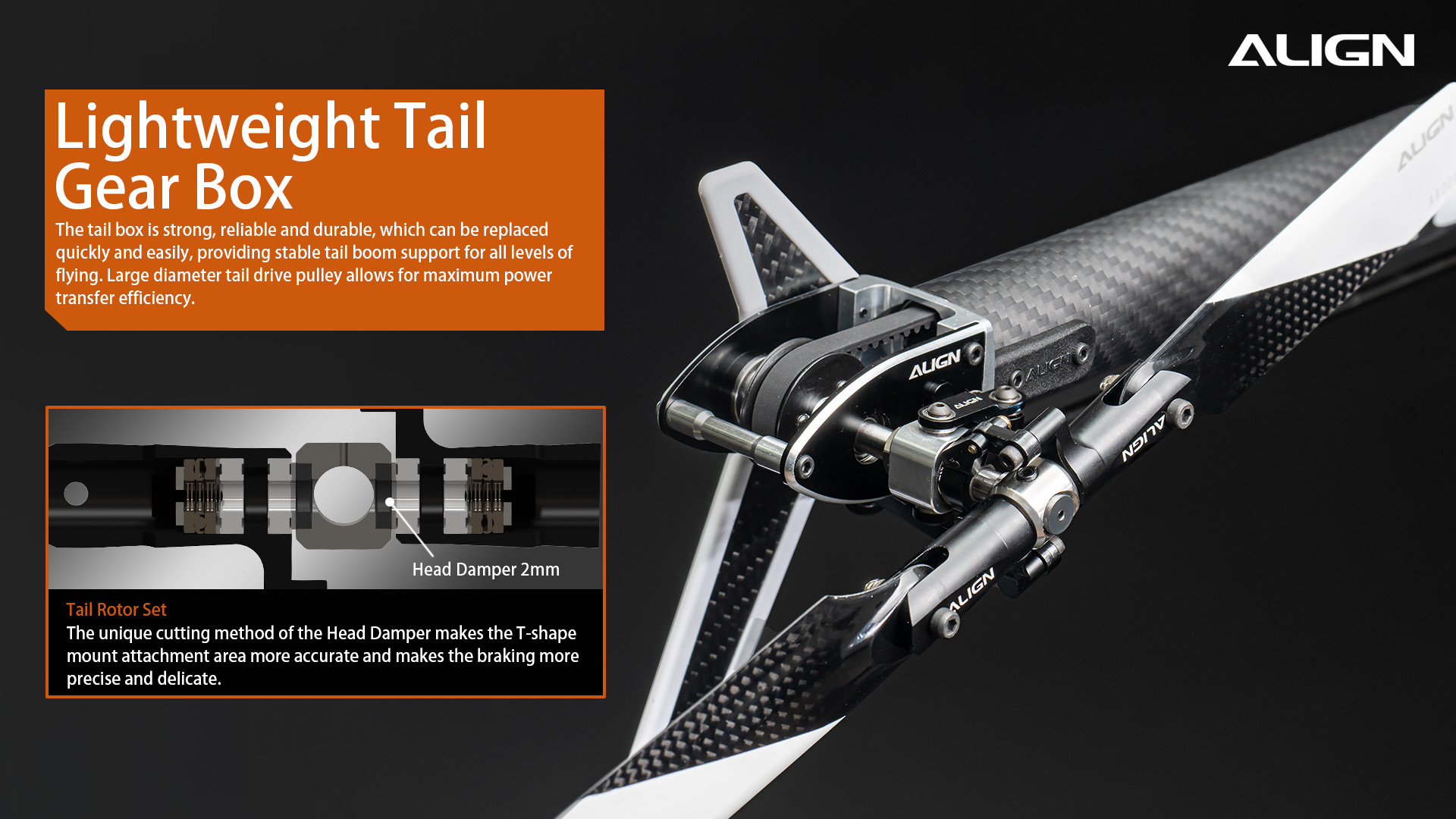

●Tail Drive Gear: 23T
●Drive Gear Ratio: 9.38:1:4.83

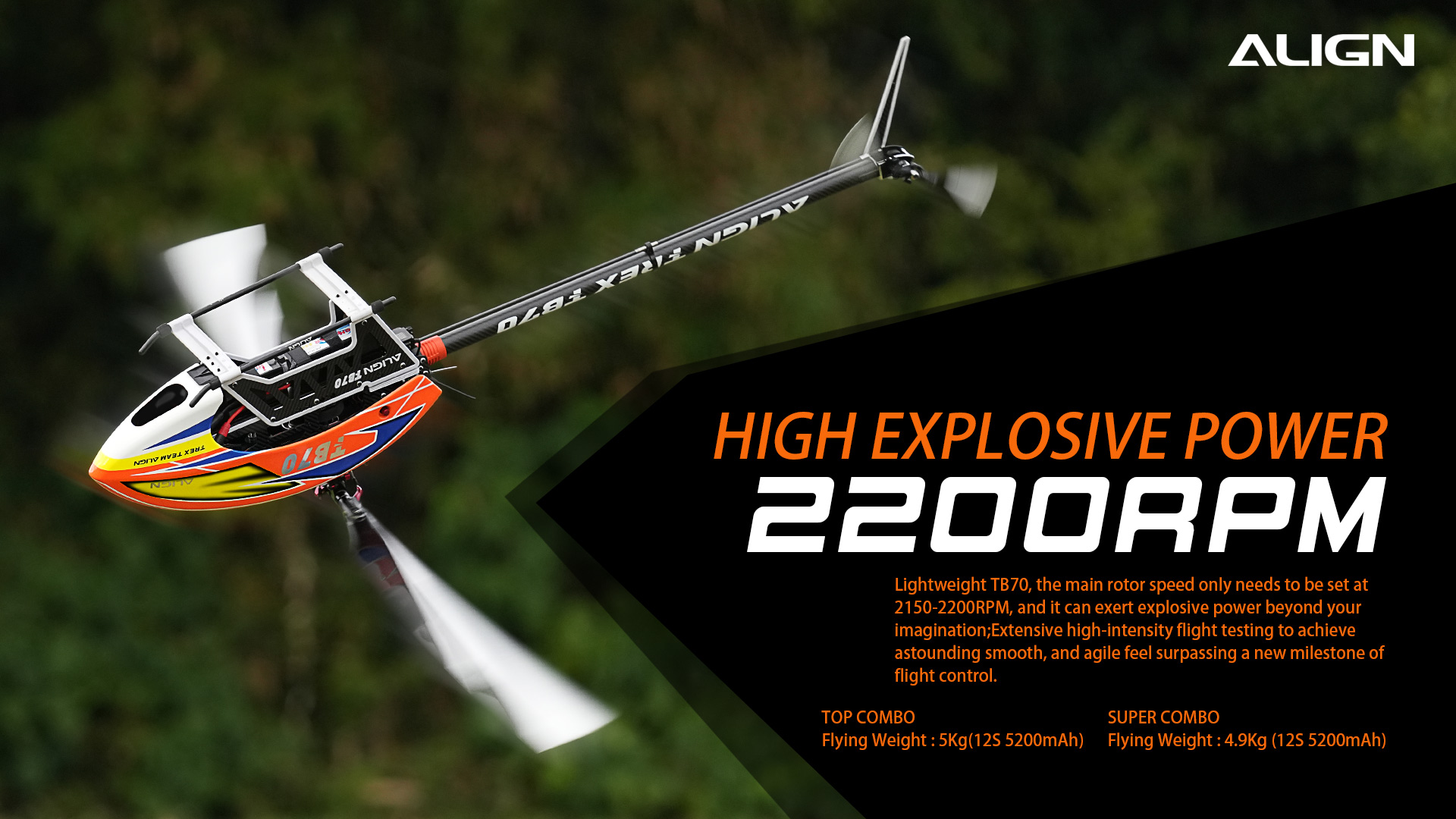

●Max RPM(approx.): 2400RPM

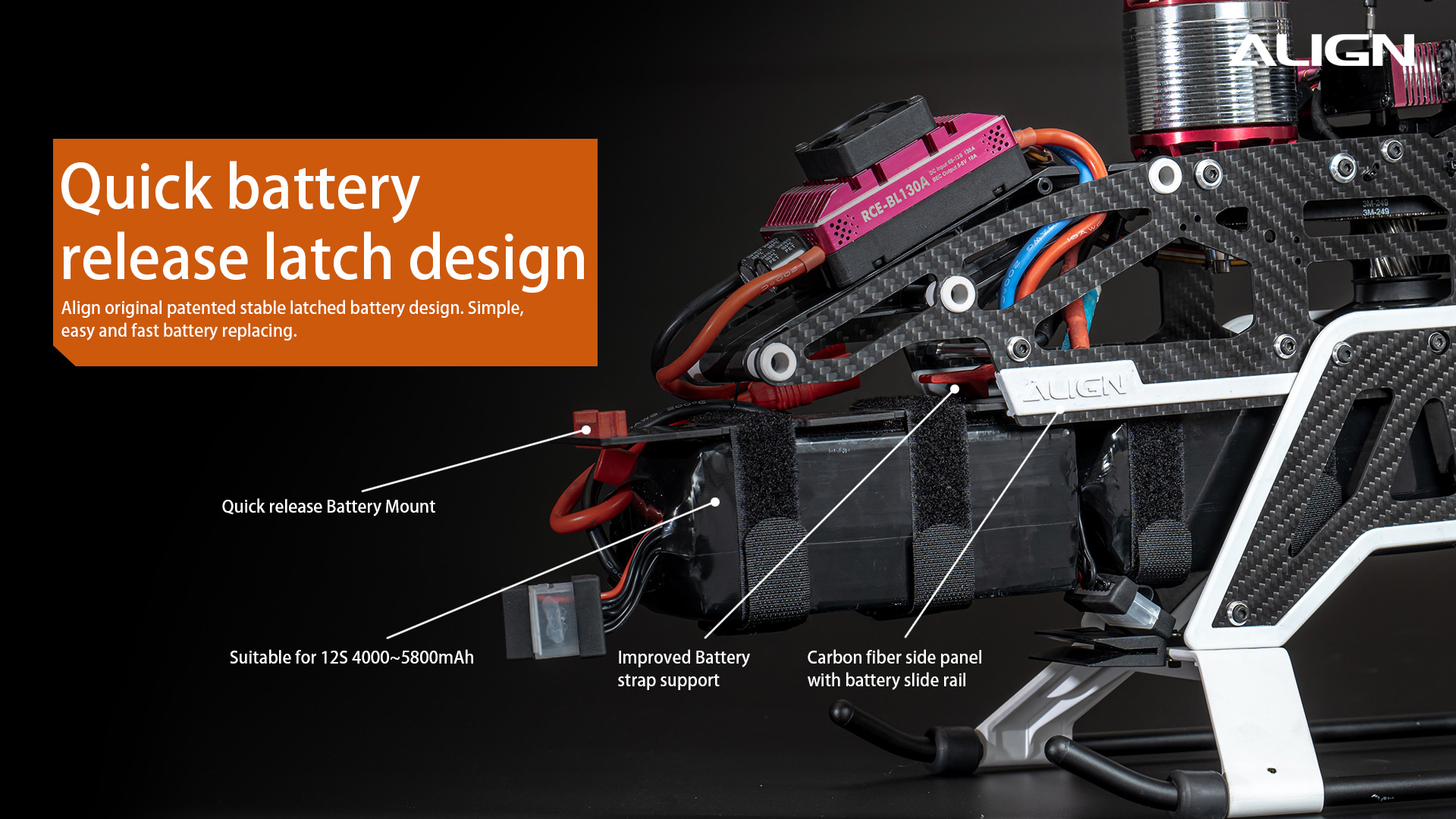

●Flying Weight(With Battery): Approx. 5kg (ALIGN 12S 5200mAh)

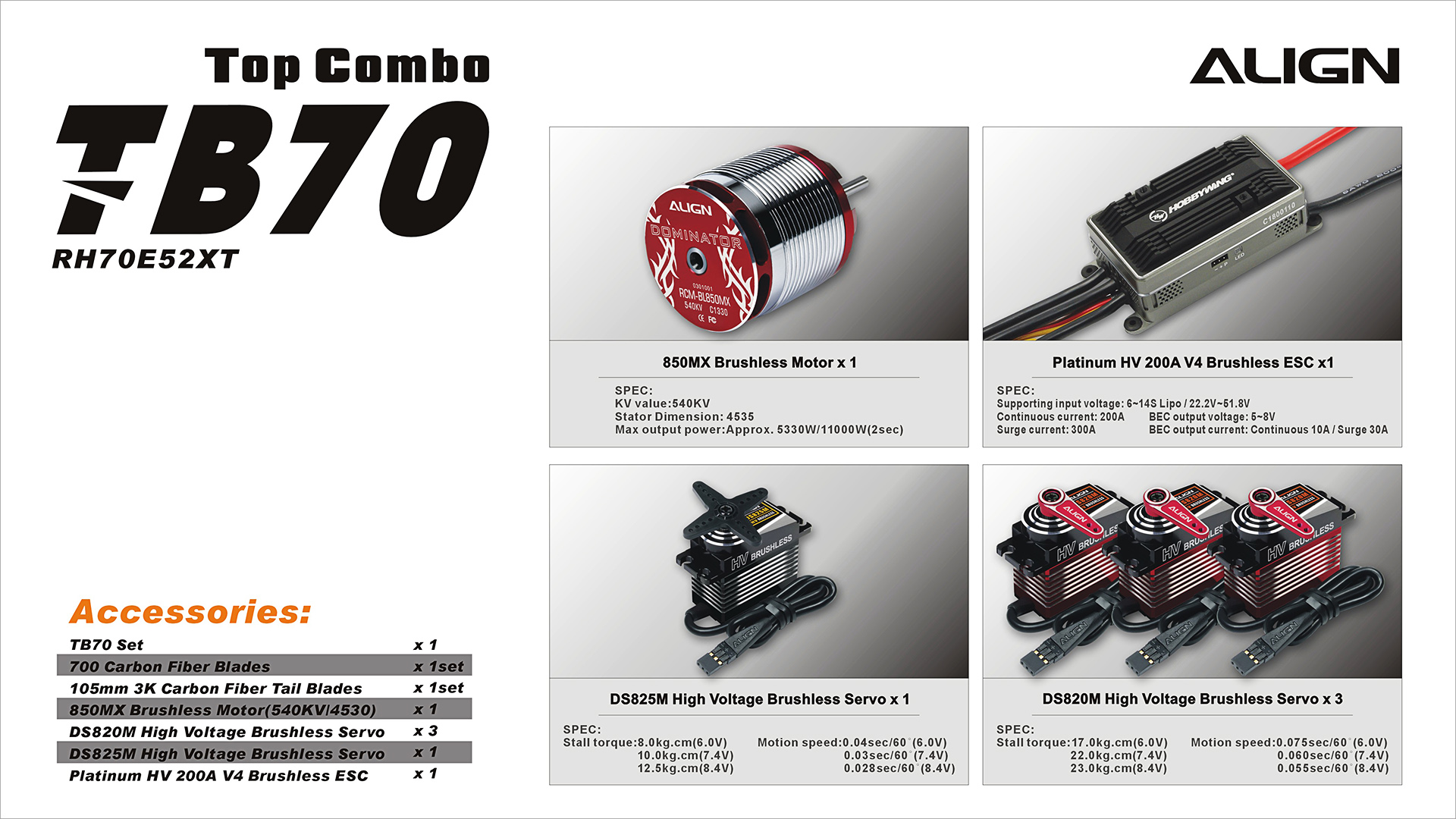

Accessories

●TB70 Kit Set x 1 set
●700 Carbon Fiber Blades x 1 set
●105 Carbon Fiber Tail Blades x 1 set

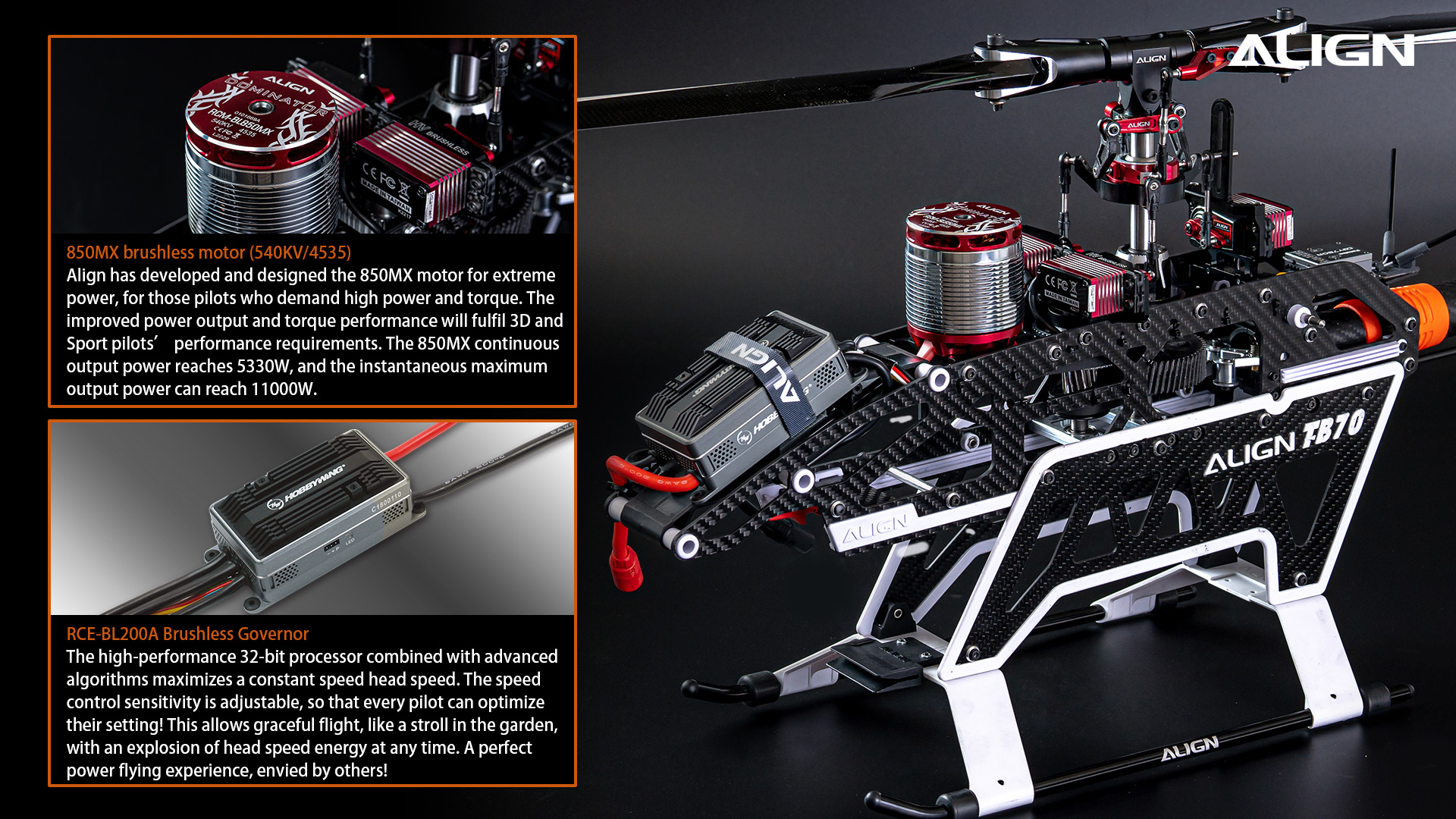

●850MX Brushless Motor(540KV/4535) x 1

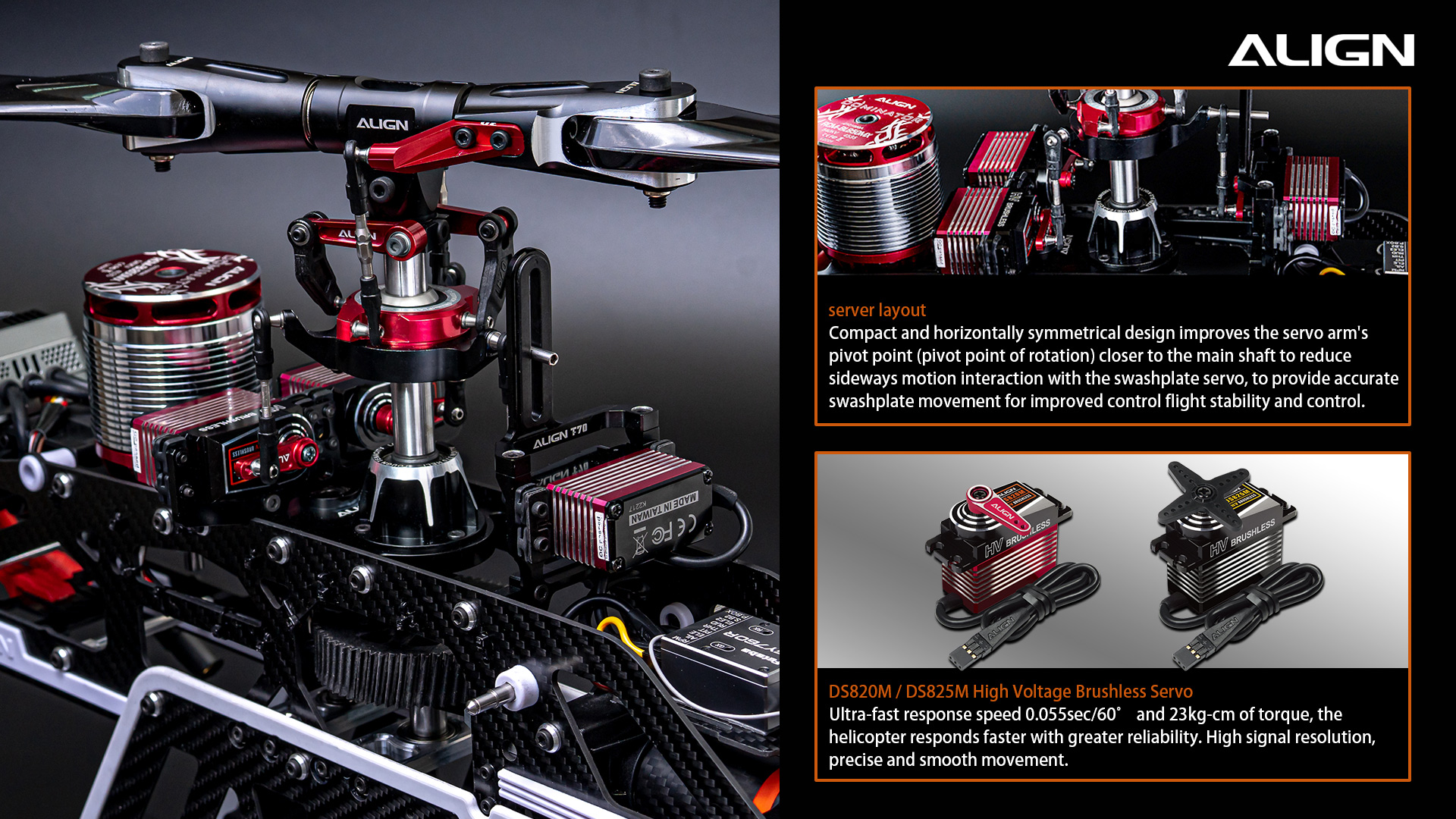

●DS820M High Voltage Brushless Servo x 3
●DS825M High Voltage Brushless Servo x 1
●Platinum HV 200A V4 Brushless ESC x 1

Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●RCC-6CX Intelligent Balance Charger
●22.2V 6S 4000~4800mAh Li-Po Battery x 2
●Digital Pitch Gauge
●Multi-function Tester
●Flybarless System
