Heli. Align T-REX TB70 Super Combo

Heli. Align T-REX TB70 Super Combo

Size
1 859,00 €
incl. VAT / pcs
Lowest product price within 30 days prior to the sale:
Express checkout 1-Click(without registration)
Enough Stock
Enough Stock
14 days for easy returns
This product is not available in a stationary store
Safe shopping

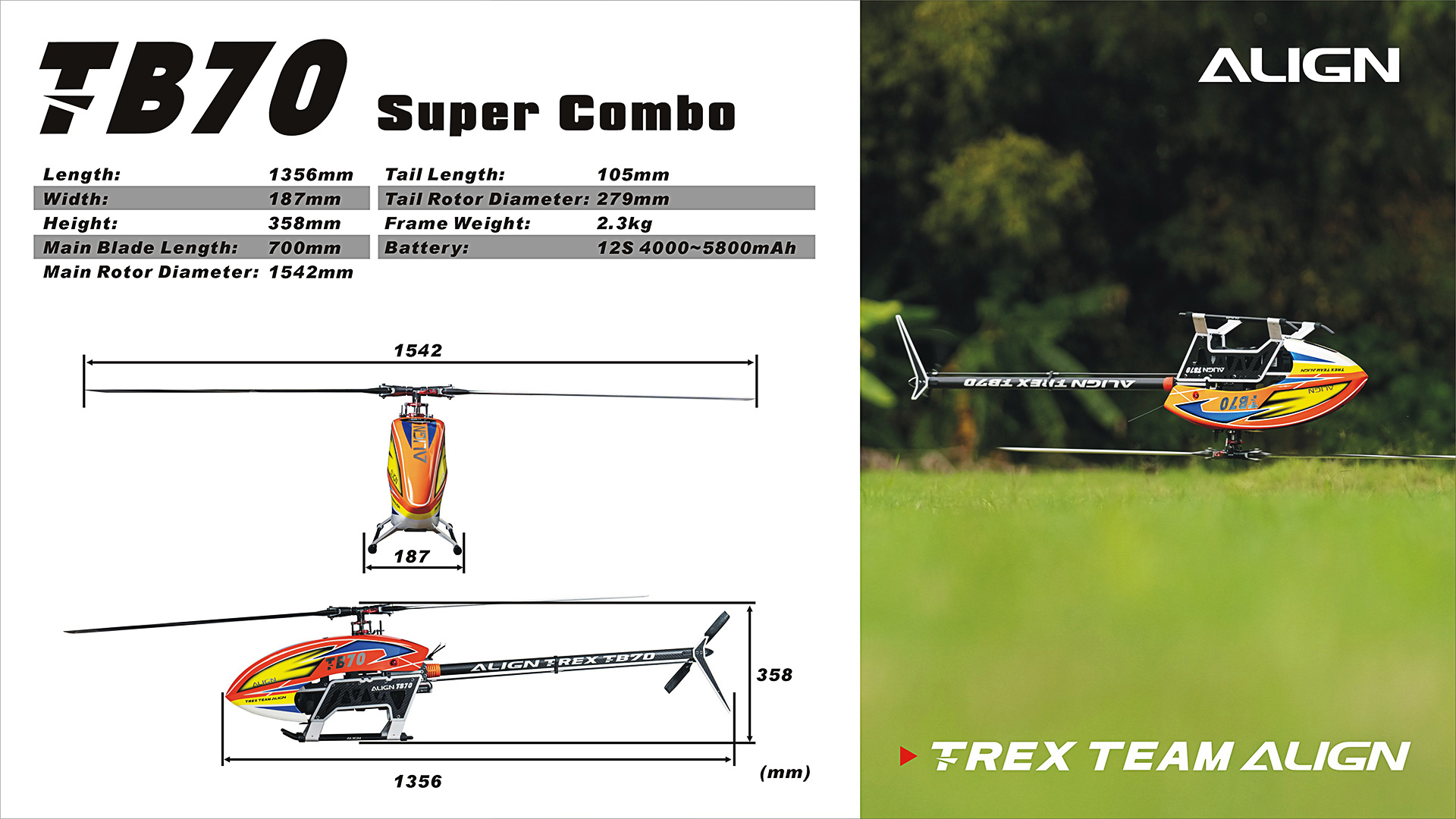

Specification

●Length: 1356mm
●Height: 358mm
●Width: 187mm
●Main Blade Length: 650-730mm
●Main Rotor Diameter: 1542mm
●Tail Length: 105-115mm
●Tail Rotor Diameter: 279mm
●Motor Belt Pulley: 23T
Belt Pulley: 50T
●Front Drive Main Shaft: 15T
●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 28T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 8.96:1:5.0
●Max RPM(approx.): 2290RPM
●Frame Weight: Approx. 2.3kg
●Flying Weight(With Battery): Approx. 4.9kg (ALIGN 12S 5200mAh)

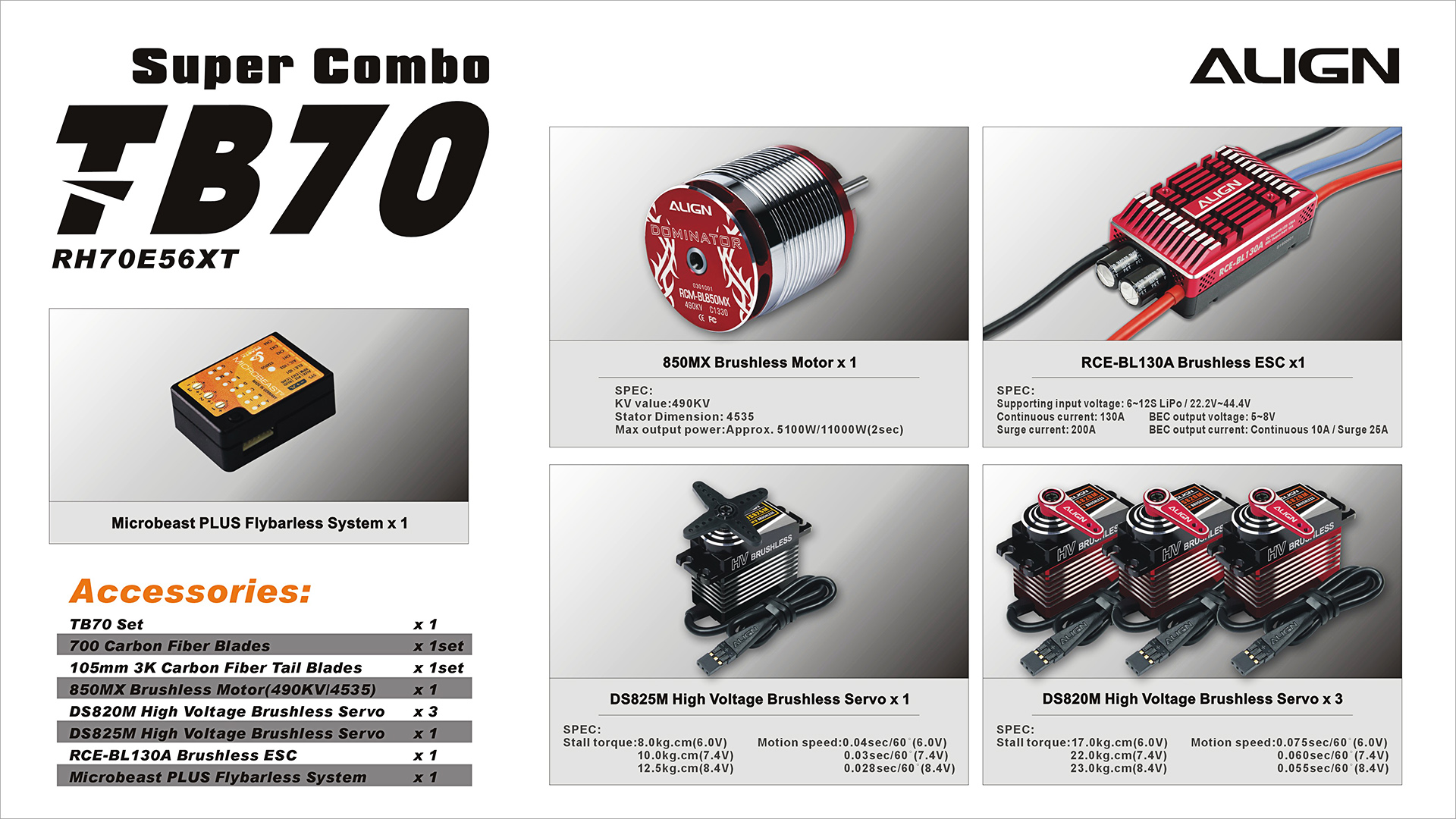

Accessories

●TB70 Kit Set x 1 set
●700 Carbon Fiber Blades x 1 set
●105mm 3K Carbon Fiber Tail Blades x 1 set
●850MX Brushless Motor(490KV/4535) x 1
●DS820M High Voltage Brushless Servo x 3
●DS825M High Voltage Brushless Servo x 1
●RCE-BL130A Brushless ESC x 1
●Microbeast PLUS Flybarless system x 1



Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●RCC-6CX Intelligent Balance Charger
●22.2V 6S 4000~4800mAh Li-Po Battery x 2
●Digital Pitch Gauge
●Multi-function Tester

Brand
Catalog no.
RH70E56X
Producer code
RH70E56X
