Flybarless system FrSky RF007 Twin

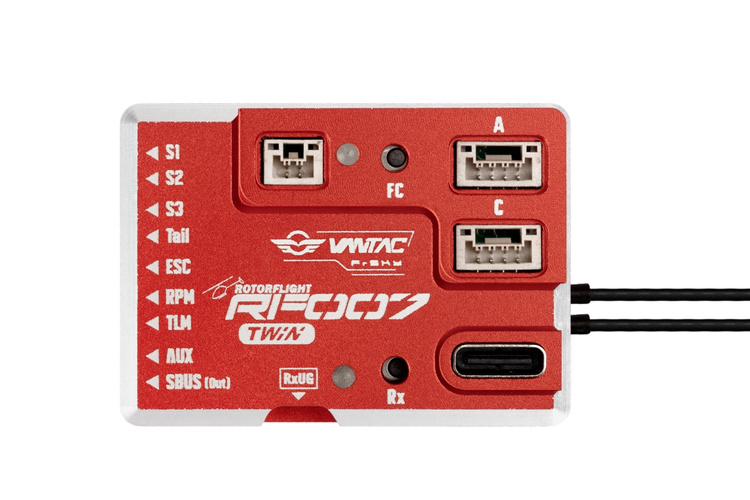

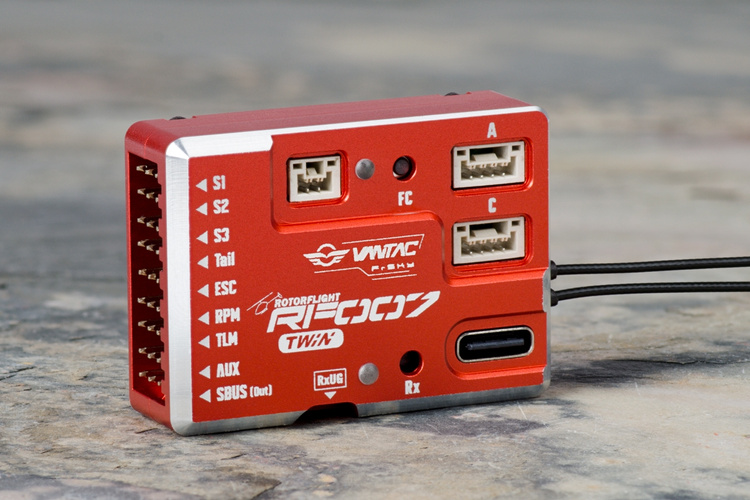

Advanced Flybarless unit of Rotorflight 2.X system with built-in 6-channel Twin 2.4GHz R6 receiver. Integrated 3-axis gyroscope, 3-axis accelerometer and barometer. Convenient configuration of a wide range of functions and real-time tuning via ETHOS transmitter interface. 128MB black box for data recording. Aluminum box 43.5×31.2×13.7 mm, 25.2 g.
FrSky VANTAC RF007 is a high-end flybarless (FBL) unit that uses the latest Rotorflight 2.X technology. With a built-in Twin 2.4GHz R6 receiver, the RF007 provides a wide range of functions while allowing intuitive configuration, seamless setup and real-time tuning via ETHOS radio interface.
Rotorflight Technology and Comprehensive Capabilities
At the heart of the RF007 is the STM32F722 MCU processor, supported by a three-axis gyroscope, a three-axis accelerometer and a barometer. Together, these components ensure accuracy and stability, giving pilots maximum confidence and trust in their machine. In addition, the controller supports flight data recording using a large 128MB black box, which offers users a wealth of data for debugging and troubleshooting.
Integrated FrSky receiver and external receiver support

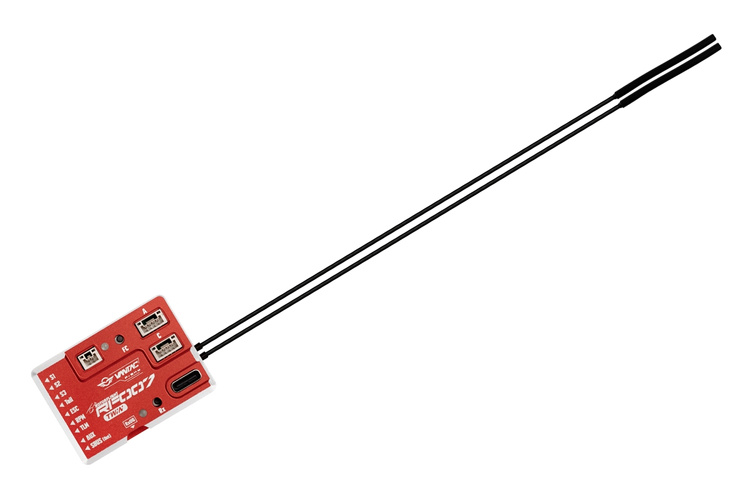

The RF007 is equipped with a built-in FrSky R6 Twin 2.4 GHz receiver that pairs directly with KAVAN or FrSky transmitters, eliminating the need for an external receiver. The internal receiver is connected via a UART bus communicating on the FBUS protocol. For users with other requirements, the receiver can also be connected via the mainboard or one of the expansion ports. Rotorflight supports a wide range of receiver signal transmission protocols. For a full list of supported protocols, please see the Rotorflight Configurator tool or visit https://rotorflight.org.
ETHOS Lua Programming/Debugging on the Go
With telemetry connectivity, Rotorflight offers integrated and highly intuitive Lua-based configuration tools that you can run directly on ETHOS transmitters. With these tools, you can quickly and easily tune and change PID settings, trims, offsets, mixes/geometry, filter settings and most other Rotorflight parameters directly from the radio screen. Supported speed controllers can also be configured using the configuration tool.
Features
Rotorflight open-source helicopter control software.
Built-in FrSky R6 (Twin 2.4GHz) receiver with FBUS support.

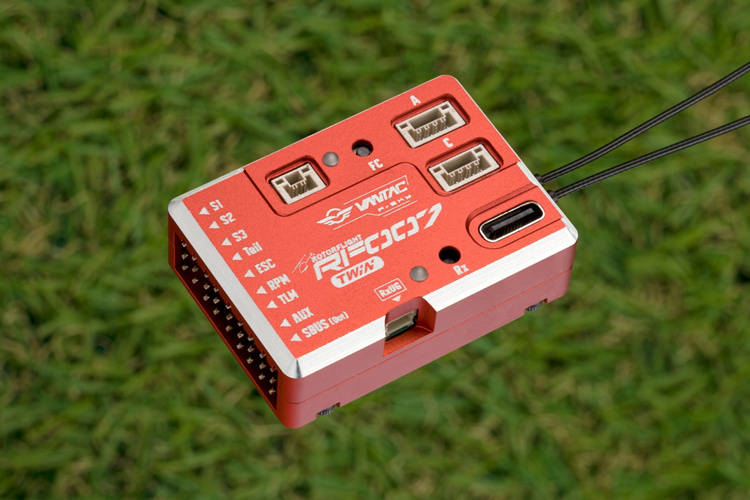

Robust CNC aluminum case, functional heat sink for MCU.
STM32F722 microprocessor for performance and versatility.
Accurate barometer, 3-axis gyroscope and 3-axis accelerometer.
128MB black box for debugging and troubleshooting.

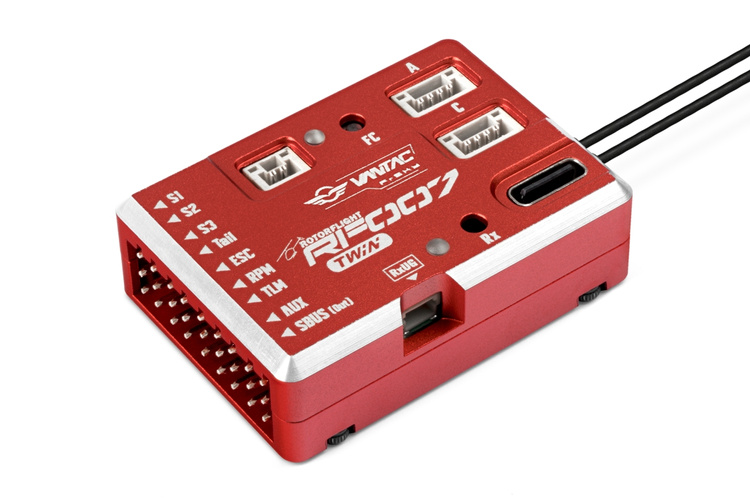

9 primary mainboard pins for flexibility and power management.
Multiple JST-GH expansion ports for UART/I2C devices.
JST-GH port for VBAT measurement input up to 80V.
Multiple ESC protocols available (PWM, Dshot, Oneshot, Multishot).
Multiple receiver and telemetry protocols available.
Supports motor or balance rotor controller.
Supports integrated configuration and setup via Lua scripts.
Specifications
Firmware: Rotorflight 2.X
Dimensions: 43.5×31.2×13.7mm
Weight: 25.2g
Receiver: Built-in Twin 2.4GHz R6 receiver.
Operating voltage: 5-16V
Operating current: 125mA at 5V
Operating frequency: 2.400-2.4835GHz
Max. radiated power: < 20 dBm
Voltage measurement range via AIN (external device): 0–80 V
