Charger iSDT K2 ZIP (2-channels, 2x200W AC, 2x500W DC)

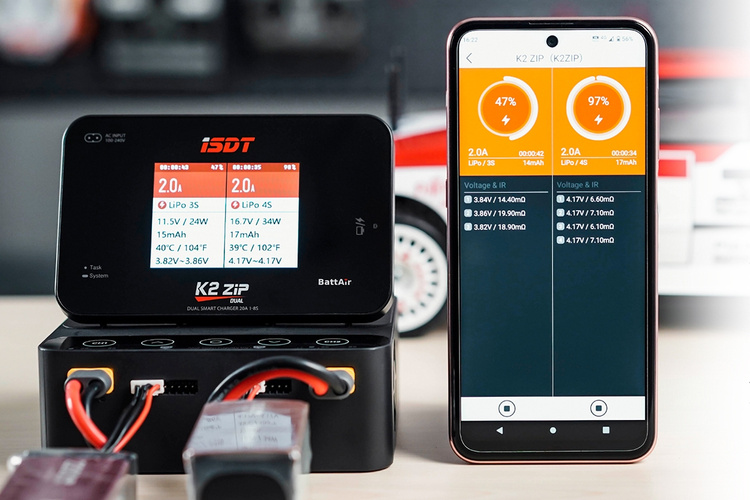

Powerful dual-channel fast charger with balancers for 1–18 cells NiCd/NiMH, 1–8 cells Li-Po/Li-ion/Li-Fe, (1–7S) LiHV, ULiHV, 2–28V Pb with a current of 0.2–20 A (max. 2x200 W with mains power or 2x500 W with DC power). Discharge 2x 0.2–1.5 A (max 2x15 W). Power supply 10–30/230 V. Internal resistance measurement, Bluetooth for setting within the BattAir system with Smart modules for batteries and BattAir/ISD LINK applications.
The high-performance dual-channel charger ISDT K2 ZIP 2x500W is an intelligent charger with power from the mains and car battery and very simple and clear operation. K2 ZIP allows you to charge and discharge common types of cells (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with built-in eight-channel balancers that ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and programming buttons that provide you with the possibility of comfortable and very clear parameter settings, control and monitoring of the charging/discharging process.
In addition to small dimensions with high power and intuitive operation, it is worth mentioning:
program for new types of "high-voltage" lithium batteries LiHV with a final charging voltage of up to 4.35 V and ULiHV with a final charging voltage of 3.45 V
powerful balancer with a current of up to 1.5 A
possibility of synchronous operation of both channels for charging two identical batteries or parallel charging of one battery with a power of up to 800 W
adjustable final charging and discharging voltage for lithium batteries (allows for more gentle charging, which is popular with pilots, or, conversely, brutal overcharging, which is popular with "car enthusiasts")
adjustable final charging voltage for lead-acid batteries (1.90-2.45 V; allows charging of all types of lead-acid batteries)
Overview of basic functions and parameters

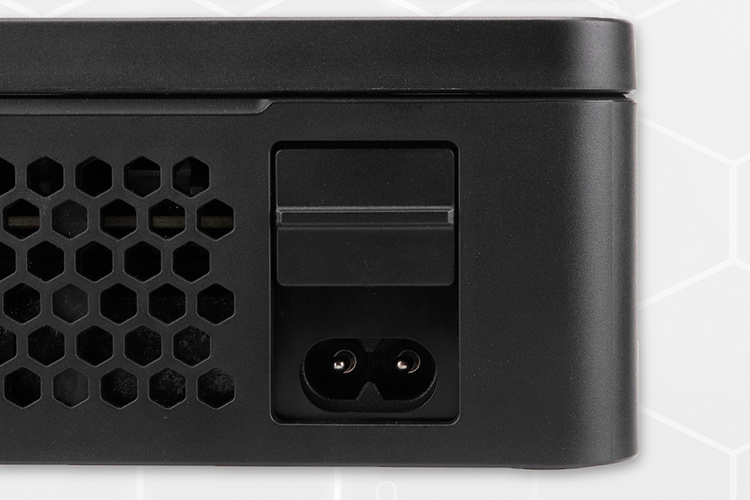

Mains power supply 100-240 V/50-60 Hz

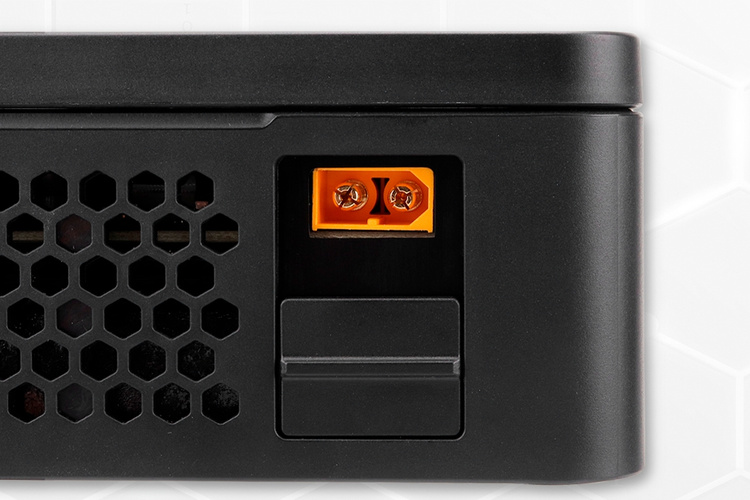

Power supply 10-30 V DC (XT60 socket) - to fully utilize the charger's capabilities, the supply voltage should be at least 24 V)
For charging and discharging 1 - 18 NiCd/NiMH cells, 1 - 8 Li-ion/Li-poly/Li-Fe, 1 - 7 LiHV/ULiHV cells or 2 - 28 V lead-acid batteries
Adjustable charging current (0.2 A - 20.0 A) in each channel (max. 200 W when powered by mains, max. 500 W when powered by a car battery or a powerful stabilized power supply)
Adjustable discharging current 0.2 A - 1.5 A in each channel
Max. charging power 1x 800W in parallel charging mode
Max. discharging power 2x 15 W, max. 1x 60 W in parallel discharge mode
Termination of charging using automatic delta-peak for NiCd and NiMH batteries
Lithium and Pb batteries are charged using the "constant current/constant voltage" method
Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
Adjustable end voltage for charging and discharging for lithium and lead batteries
Three modes for lithium batteries - charging, discharging and storage charging/discharging; all with or without a balancer. And a disposal discharge mode for safe discharge of a discarded battery before it is handed over for recycling
Channel CH1 and CH2 can work as a stabilized power supply with an adjustable voltage of 2-30 V and a current of 1.0-5.0 A
Easy firmware update via USB-C port; port can be switched to function as a power/charging socket for smartphones 5 V/ 2 A
Second USB-C PD power/charging port (max. 65 W)

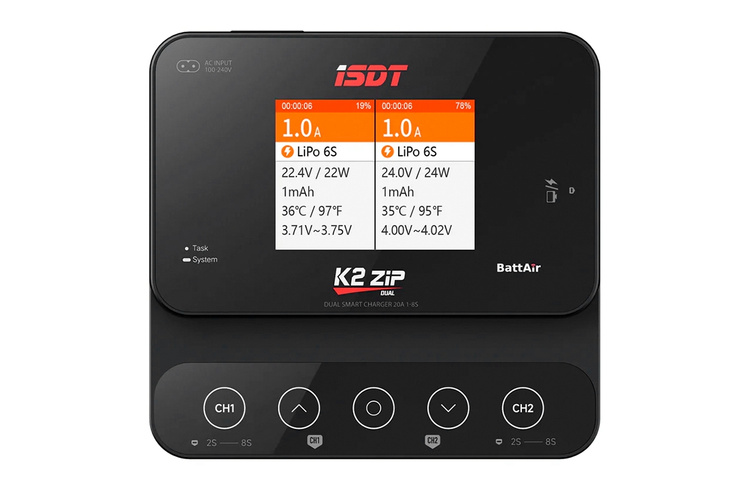

Backlit color flip-out LCD display with a simple and clear menu and displaying parameters during charging/discharging
Sensor programming buttons for easy and clear settings and control of the charger
A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, etc.
Fan for forced cooling.

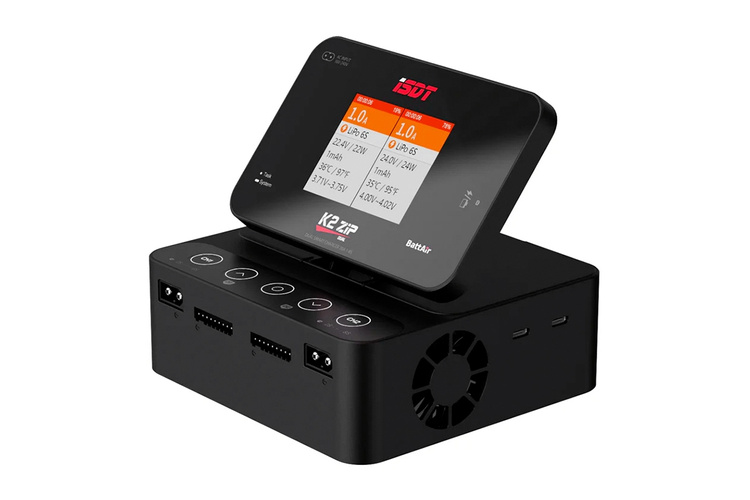

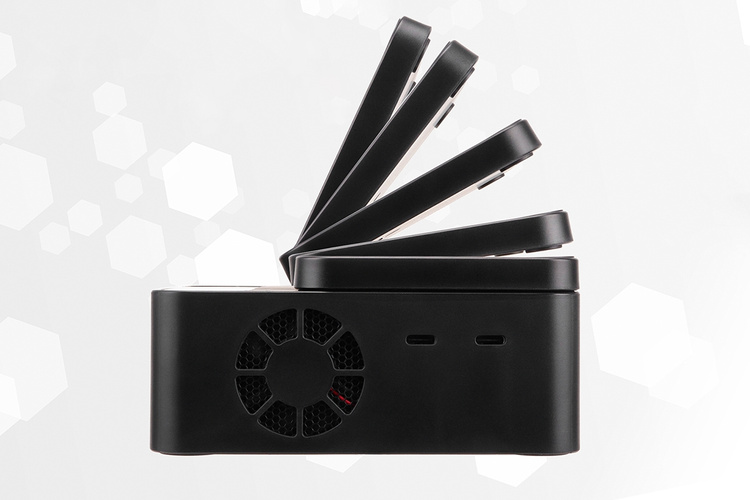

Compact plastic case, small dimensions, flip-out LCD display

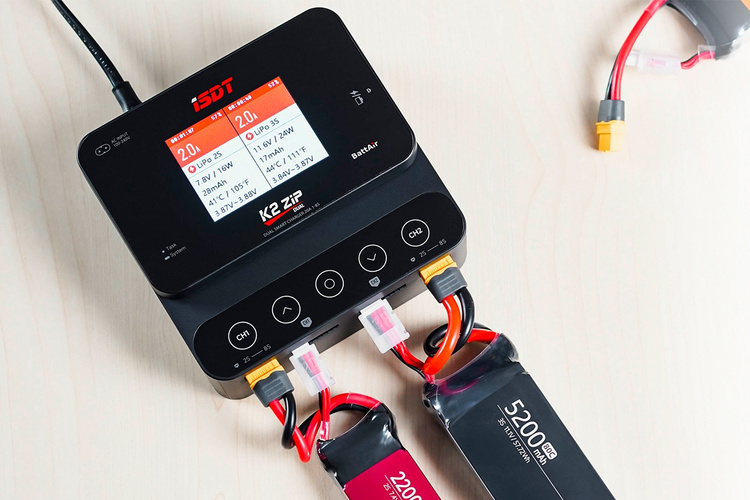

The charger is equipped with XT60 output sockets and universal sockets for JST-XH service connectors in both channels, allowing you to directly connect the battery power cables and JST-XH service connectors of 2-8S sets - if you use sets with XT60 and JST-XH connectors, you can do without charging cables and adapters. To connect the service connectors of other systems, you can use standard Sky RC or RC System adapters.
The charger kit includes: ISDT K2 ZIP charger, power cable, instructions.
