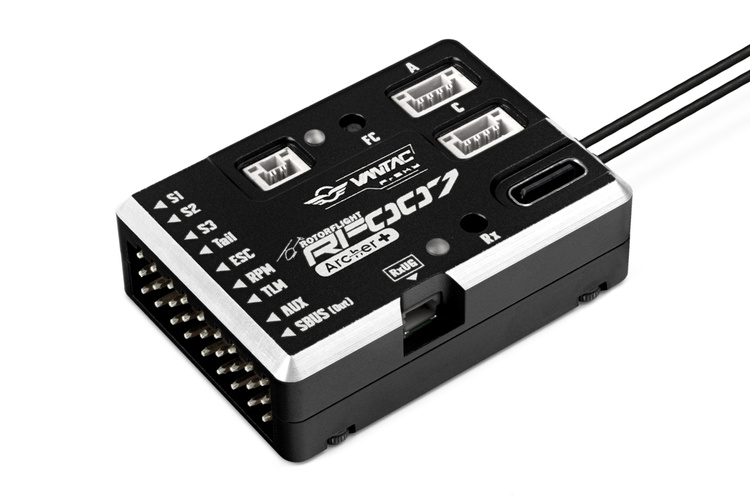

Flybarless system FrSky RF007 Archer
The FrSky VANTAC RF007 is a high-end flybarless (FBL) unit that uses the latest Rotorflight 2.X technology. With a built-in Access 2.4GHz RS receiver, the RF007 provides a wide range of functions while allowing intuitive configuration, seamless setup and real-time debugging via the ETHOS radio interface.
Rotorflight technology and comprehensive capabilities
The core of the RF007 is the STM32F722 MCU processor, supported by a three-axis gyroscope, a three-axis accelerometer and a barometer. Together, these components ensure accuracy and stability, giving pilots maximum confidence and trust in their machine. In addition, the controller supports flight data recording using a large 128MB black box, offering users a wealth of data for debugging and troubleshooting.
Integrated FrSky Receiver and External Receiver Support
The RF007 features a built-in FrSky Access 2.4 GHz RS receiver that pairs directly with KAVAN or FrSky transmitters, eliminating the need for an external receiver. The internal receiver is connected via a UART bus communicating on the FBUS protocol. For users with different requirements, the receiver can also be connected via the mainboard or one of the expansion ports. Rotorflight supports a wide range of receiver signal transmission protocols. For a full list of supported protocols, see the Rotorflight Configurator tool or visit https://rotorflight.org.
On-the-fly programming/debugging using ETHOS Lua
Thanks to telemetry connectivity, Rotorflight offers integrated and highly intuitive Lua-based configuration tools that you can run directly on ETHOS transmitters. Using these tools, you can quickly and easily tune and change PID settings, trims, offsets, mixes/geometry, filter settings and most other Rotorflight parameters directly from the radio screen. Supported speed controllers can also be configured using the configuration tool.
Features
Rotorflight open-source helicopter control software.
Built-in FrSky RS receiver (Access 2.4GHz) with FBUS support.
Robust CNC aluminum case, functional heat sink for MCU.
STM32F722 microprocessor for performance and versatility.
Accurate barometer, 3-axis gyroscope and 3-axis accelerometer.
128MB black box for debugging and troubleshooting.
9 primary mainboard pins for flexibility and power management.
Multiple JST-GH expansion ports for UART/I2C devices.
JST-GH port for VBAT measurement input up to 80V.
Multiple ESC protocols available (PWM, Dshot, Oneshot, Multishot).
Multiple receiver and telemetry protocols available.
Supports motor or trim rotor controller.
Supports integrated configuration and setup via Lua scripts.
Specifications
Firmware: Rotorflight 2.X
Dimensions: 43.5×31.2×13.7 mm
Weight: 25.2 g
Receiver: Built-in Access 2.4GHz RS receiver.
Operating voltage: 5–16 V
Operating current: 125 mA at 5 V
Operating frequency: 2.400–2.4835 GHz
Max. radiated power: < 20 dBm
Voltage measurement range via AIN (external device): 0–80 V
