Servos Combo THETA KENNY KO EDITION HV Brushless 3x THL788 1x THL782

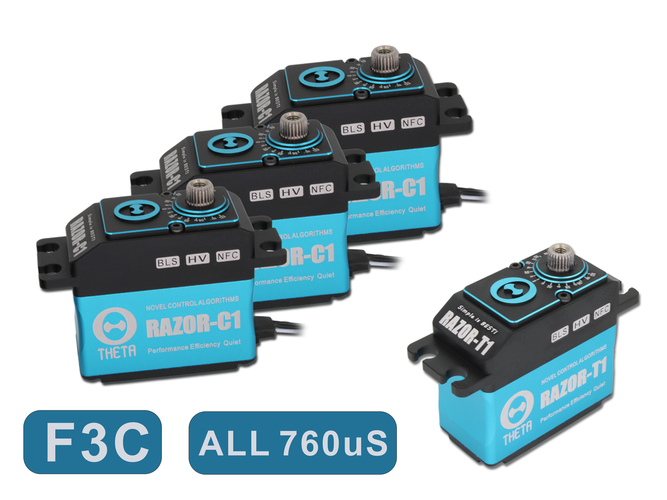

THETA Helicopter Set 3x RAZOR-C1 F3C 760µs for swashplate and the RAZOR-T1 F3C 760µs for tail / Brushless HV Servo with NFC
The Heli F3C set is optimized to get the full power out of flybarless systems, which can also deliver a center pulse of 760µs for the swashplate, such as the Futaba CGY760R.
Please make sure that your flybarless system supports this. The servos cannot be operated with a standard center pulse of 1520µs when delivered.
NFC programmable brushless HV servo in the 40 mm standard size.
The field of application of the servo set is for helicopters from 550 to 800+ size.
Specifications RAZOR-C1 F3C swashplate servo:
| Motor | Brushless |
| Operating Voltage | 5V bis 8,4V |
| Speed at 5V | 0,108 (sec/60°) |
| Speed at 6V | 0,084 (sec/60°) |
| Speed at 7,4V | 0,071 (sec/60°) |
| Speed at 8,4V | 0,060 (sec/60°) |
| Torque at 5V | 23 (kg/cm) |
| Torque at 6V | 27 (kg/cm) |
| Torque at 7,4V | 34 (kg/cm) |
| Torque at 8,4V | 36 (kg/cm) |
| Speed at 5V | 0,102 (sec/60°) |
| Speed at 6V | 0,079 (sec/60°) |
| Speed at 7,4V | 0,067 (sec/60°) |
| Speed at 8,4V | 0,056 (sec/60°) |
| Torque at 5V | 32 (kg/cm) |
| Torque at 6V | 37 (kg/cm) |
| Torque at 7,4V | 44 (kg/cm) |
| Torque at 8,4V | 48 (kg/cm) |
| Weight | 73g |
| Dimensions (mm) | 40x20x38mm |
| Neutral pulse (factory-made) | 760µs |
| Neutral pulse (optional per App) | 1520µs |
| Maximale Working Frequency | 50-400Hz |
| Output toothing | 25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.) |
Specifications RAZOR-T1 F3C Tailservo:
| Motor | Brushless |
| Operating Voltage | 5V bis 8,4V |
| Speed at 5V | 0,062 (sec/60°) |
| Speed at 6V | 0,054 (sec/60°) |
| Speed at 7,4V | 0,047 (sec/60°) |
| Speed at 8,4V | 0,042 (sec/60°) |
| Torque at 5V | 17 (kg/cm) |
| Torque at 6V | 18 (kg/cm) |
| Torque at 7,4V | 19 (kg/cm) |
| Torque at 8,4V | 20 (kg/cm) |
| Speed at 5V | 0,058 (sec/60°) |
| Speed at 6V | 0,051 (sec/60°) |
| Speed at 7,4V | 0,044 (sec/60°) |
| Speed at 8,4V | 0,039 (sec/60°) |
| Torque at 5V | 20 (kg/cm) |
| Torque at 6V | 24 (kg/cm) |
| Torque at 7,4V | 27 (kg/cm) |
| Torque at 8,4V | 30 (kg/cm) |
| Weight | 73g |
| Dimensions (mm) | 40x20x38mm |
| Neutral pulse (factory-made) | 1520µs |
| Neutral pulse (optional per App) | 760µs |
| Working Frequency | 50-1000Hz |
| Output toothing | 25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.) |
Accessories:
3x Servo RAZOR-C1 F3C
1x Servo RAZOR-T1 F3C
